| COLTRI – “SILENT” Open CompressorSCBA Sales Co

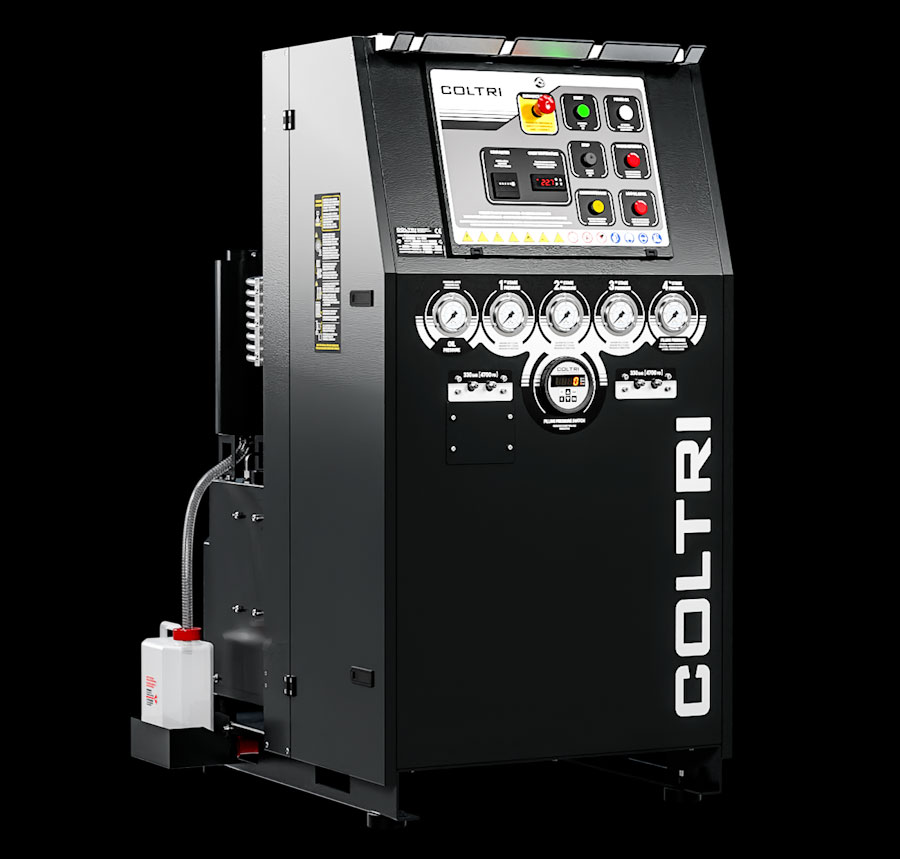

COLTRI – “SILENT” Open Compressor

Open meets professional needs that require large charging

capacities in hot, poorly ventilated or tropical countries. It

is equipped with 4 front filling connections for high

pressure hoses, an intuitive control panel and an electric

motor. The pumping unit, chosen from the 4 most powerful,

is exposed in the rear part of the structure to ensure a

better cooling cycle. For longer filter life, the Tornado high

pressure dryer is recommended. Available as optional: the

Presec system for filter saturation control or the SAM

system for multigas analysis and remote charging panel.

Description

Standard Equipment

4 Filling connections of your choice of 2216, 3000, 4500 – 6000 psi Connections

4 filling hoses of 1.2 m (3′) in length

Pressure maintenance valve

Interstage control gauges

Double PED certified Hyperfilter filter system

Cabin internal temperature with automatic switch-off

Automatic condensate drain

Automatic direction of rotation control

Electronic pressure switch with automatic shutdown

Oil level control with automatic shutdown

Oil pump

Automatic condensate drain with conveyor system in the tank

Frame color Black RAL 9005

Technical data

Type of gas

Breathing air – Nitrox 40% max O2 – Helium – Nitrogen

Intake pressure

Atmospheric Pressure

Nominal pressure

2216 PSI / 4500 PSI / 6000 PSI

Working pressure

2216 PSI / 4500 PSI / 6000 PSI

Max working pressure

6000 PSI

Permissible ambient temperature range

-10° C (10 F) ÷ +40° C (104 F)

Permissible altitude

0 ÷ 1.500 m SLM ( 5,000′)

Max permissible tilt

15°

Design

Cabinet insonorizzato

Operating voltage, standard

400 V; 50 Hz

Other operating voltage

On three-phase electric motor at 60Hz the power (kW / Hp) increases by 20%.

230 V 50 hz / 440 V 60 hz / 230 V 60 hz

Oil

Synthetic Coltri Oil ST 755

Oil change interval

Every year / 1,000 h

Frame

Steel thickness 1.5 mm – color RAL 9005 – Powder coating – scratch-resistant
